Phantom VEO 340

Small, rugged, powerful high-speed camera

3Gpx/second throughput, 4 Megapixel resolution

Exposure Index range: Mono 6400 – 32,000 D; Color 1250 – 6400 D

18, 36 or 72GB RAM

Includes Programmable I/O, SDI and HDMI video outputs

Available in L (light) or S
(full featured) models

Short Description

Phantom VEO cameras are compact, rugged and full of high-end features. The 340 model captures at over 800 frames-per-second at four megapixel resolution.

Programmable I/O, SDI video, Canon EOS lens support and optional CineFlash 2.0 recording media are just a few of the features you will love.

Available in both L and S styles.

Throughput/Speed

3 Gpx/second

Max speed at full resolution of 2560 x 1600 is 800 fps

Max speed at reduced resolution of 128 x 4 is 300,000 fps

Min frame rate of 24 fps

Sensor Specifications

CMOS sensor

2560 x 1600 pixels

10 µm pixel size

25.6 mm x 16.0 mm

12-bit depth

ISO Monochrome 6,400 D

ISO Color 1,250 D E.I range 1,250-6,400 (color); 6,400 - 40,000 (mono)

TE cooled

CAR in 128 x 4 increments

Exposure

1 µs minimum exposure

Global electronic shutter

Exposure Index (E.I.) for controlling apparent ISO

Extreme Dynamic Range (EDR)

Auto Exposure

Shutter Off moExtreme Dynamic Range (EDR)

Auto Exposure

Shutter Off mode for PIV

Memory

18 GB, 36 GB, 72 GB high-speed internal RAM

On-board removable CFast 2.0 cards (S-models) up to 256GB

Record Times

15 seconds at maximum frame rate, largest resolution and into maximum internal memory

Special Features

Segment memory for up to 63 cines in multi-cine mode

Continuous recording

Programmable I/O

HD-SDI and HDMI video

Event marking

Frame timestamp (IRIG SMPTE or MISP)

IRIG in/out (modulated and unmodulated)

Shutter off mode for PIV exposure

Standard Internal mechanical shutter for automatic/remote Current Session Reference (CSR)

Image-Based Auto-Trigger (IBAT)

One 12 VDC, 6W auxiliary power port

Secondary IP address

Field-based firmware upgrades

Triggering

Programmable trigger location (pre/post trigger recording)

Image-Based Auto-Trigger

Trigger from software

Trigger from on-camera controls (S-model)

Hardware trigger BNC

Timing & Synchronization

20 ns timing accuracy

Frame synchronization to internal or external clock (FSYNC)

IRIG in/out (modulated or unmodulated)

Signaling

Dedicated Trigger and Timecode In BNCs on camera body

Range Data input on S-model camera body (Fischer)

Programmable I/O ports includes adjustable (assign and define) signals including F-sync, strobe, event, trigger output, ready and more

Ethernet Connection

Gb Ethernet for both control and data. Fischer port on S-models; RJ45 port on L-models

Camera Control

On-Camera Controls (OCC) on S-model camera

Phantom Camera Control (PCC)

SDK available

Video Out

3G HD-SDI and HDMI on all VEO models.

Additional 3G HD-SDI BNC port on back.

Supports up to 1080p60.

Lensing

Nikon F-mount standard, supports F & G style lenses

Canon EOS mount optional

PL-mount optional

C-mount optional

(lens not included)

Video Processing

Brightness

Gain

Gamma

Saturation

White Balance

Pedestal

Tone curve

Filters

Color matrix

Image flip and rotate

Crop

Scale

Data Acquisition

National Instruments M- and X-Series DAQ modules with integrated support in PCC

Motion Analysis

Basic measurements via Phantom Application:

Distance

Speed

Acceleration

Angles and Angular Speed

Manual and Automatic point collection for target tracking

Compatible with 3rd party solutions

Supported File Formats

Cine RAW, Cine Compressed, AVI, h.264 mp4, Apple ProRes .mov, Multipage TIFF, MXF PAL, MXF NTSC, Uncompressed QuickTime, Windows BMP, OS/2 BMP, PCX, TGA, TIFF, LEAD, JPEG, JTIF, RAW, DNG, DPX

Power

100 - 240 VAC, 16-32 VDC via primary power input.

65 Watt 24V power supply included

Secondary power input, down to 12V via capture port on S-model cameras

Mechanical Specifications

Size (without lens): 5.0 x 5.0 x 5.0 inches (L x W x H); 12.7 x 12.7 x 12.7 cm

Weight: 5.6 lbs (2.5 kg)

Environmental Specifications

Operating Temperature: -10°C - 50°C

Shock:MIL-STD-202G Method 213-B. Rated 30G with shutter; 100G without shutter; sawtooth wave, 11ms, +/- 10 pulses all axes (60 total)

Vibration: Rated 12Grms; Figure 2A-1, Test Condition D, 15 min per axis (without lenses)

APIs

Phantom SDK

LabView

MatLab

Ships Standard With

Power supply

Ethernet cable

SDI DIN Cable

Phantom PCC software

Getting Started Guide

Options

Canon EOS lens mount

PL-mount

C-mount

Popular Accessories

Handle

Cheese Plate

Small, rugged, powerful high-speed camera

4Gpx/second throughput, 1 Megapixel resolution

18, 36 or 72GB RAM

Includes Programmable I/O, SDI and HDMI video outputs

Available in L (Light) or S (Full Featured) models

Short Description

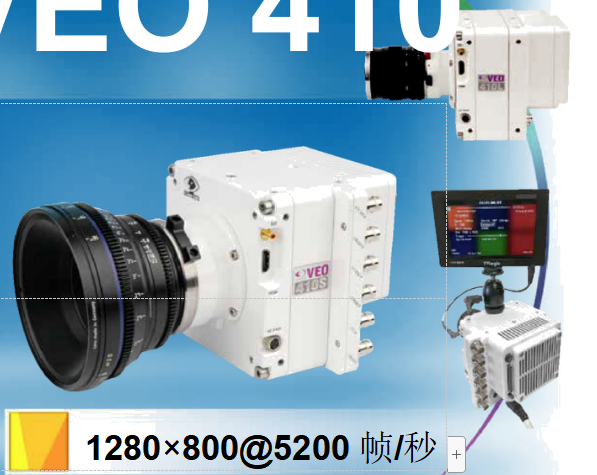

ØPhantom VEO cameras are compact, rugged and full of high-end features. The 410 model captures at over 4,000 frames-per-second at one megapixel resolution.

ØProgrammable I/O, SDI video, Canon EOS lens support and optional CineFlash 2.0 recording media are just a few of the features you will love.

ØAvailable in both L and S styles.

Throughput/Speed

Ø4 Gpx/second

ØMax speed at full resolution of 1280 x 800 is 4000 fps

ØMax speed at reduced resolution of 64 x 8 is 600,000 fps

ØMinimum frame rate of 24 fps

Sensor Specifications

ØCMOS sensor

Ø1280 x 800 pixels

Ø20 µm pixel size

Ø25.6 mm x 16.0 mm

Ø12-bit depth

ØISO Monochrome 6,400 D

ØISO Color 2,000 D E.I range 2,000 - 10,000 (color); 6,400 - 40,000 (mono)

ØTE cooled

ØCAR in 64 x 8 increments

Exposure

Ø1 µs minimum exposure

ØGlobal electronic shutter

ØExposure Index (E.I.) for controlling apparent ISO

ØExtreme Dynamic Range (EDR)

ØAuto Exposure

ØShutter Off moExtreme Dynamic Range (EDR)

ØAuto Exposure

ØShutter Off mode for PIV

Memory

Ø18 GB, 36 GB, 72 GB high-speed internal RAM

ØOn-board removable CFast 2.0 cards (S-models) up to 256GB

Record Times

Ø12 seconds at maximum frame rate, largest resolution and into maximum internal memory

Special Features

ØSegment memory for up to 63 cines in multi-cine mode

ØContinuous recording

ØProgrammable I/O

ØHD-SDI and HDMI video

ØEvent marking

ØFrame timestamp (IRIG SMPTE or MISP)

ØIRIG in/out (modulated and unmodulated)

ØShutter off mode for PIV exposure

ØStandard Internal mechanical shutter for automatic/remote Current Session Reference (CSR)

ØImage-Based Auto-Trigger (IBAT)

ØOne 12 VDC, 6W auxiliary power port

ØSecondary IP address

ØField-based firmware upgrades

Triggering

ØProgrammable trigger location (pre/post trigger recording)

ØImage-Based Auto-Trigger

ØTrigger from software

ØTrigger from on-camera controls (S-model)

ØHardware trigger BNC

Timing & Synchronization

Ø20 ns timing accuracy

ØFrame synchronization to internal or external clock (FSYNC)

ØIRIG in/out (modulated or unmodulated)

Signaling

ØDedicated Trigger and Timecode In BNCs on camera body

ØRange Data input on S-model camera body (Fischer)

ØProgrammable I/O ports includes adjustable (assign and define) signals including F-sync, strobe, event, trigger output, ready and more

Ethernet Connection

ØGb Ethernet for both control and data. Fischer port on S-models; RJ45 port on L-models

Camera Control

ØOn-Camera Controls (OCC) on S-model camera

ØPhantom Camera Control (PCC)

ØSDK available

Video Out

Ø3G HD-SDI and HDMI on all VEO models.

ØAdditional 3G HD-SDI BNC port on back.

ØSupports up to 1080p60.

Lensing

ØNikon F-mount standard, supports F & G style lenses

ØCanon EOS mount optional

ØPL-mount optional

ØC-mount optional

Ø(lens not included)

Video Processing

ØBrightness

ØGain

ØGamma

ØSaturation

ØWhite Balance

ØPedestal

ØTone curve

ØFilters

ØColor matrix

ØImage flip and rotate

ØCrop

ØScale

Data Acquisition

ØNational Instruments M- and X-Series DAQ modules with integrated support in PCC

Motion Analysis

ØBasic measurements via Phantom Application:

ØDistance

ØSpeed

ØAcceleration

ØAngles and Angular Speed

ØManual and Automatic point collection for target tracking

ØCompatible with 3rd party solutions

Supported File Formats

ØCine RAW, Cine Compressed, AVI, h.264 mp4, Apple ProRes .mov, Multipage TIFF, MXF PAL, MXF NTSC, Uncompressed QuickTime, Windows BMP, OS/2 BMP, PCX, TGA, TIFF, LEAD, JPEG, JTIF, RAW, DNG, DPX

Power

Ø100 - 240 VAC, 16-32 VDC via primary power input.

Ø65 Watt 24V power supply included

ØSecondary power input, down to 12V via capture port on S-model cameras

Mechanical Specifications

ØSize (without lens): 5.0 x 5.0 x 5.0 inches (L x W x H); 12.7 x 12.7 x 12.7 cm

ØWeight: 5.6 lbs (2.5 kg)

Environmental Specifications

ØOperating Temperature: -10°C - 50°C

ØShock:MIL-STD-202G Method 213-B. Rated 30G with shutter; 100G without shutter; sawtooth wave, 11ms, +/- 10 pulses all axes (60 total)

ØVibration: Rated 12Grms; Figure 2A-1, Test Condition D, 15 min per axis (without lenses)

APIs

ØPhantom SDK

ØLabView

ØMatLab

Ships Standard With

ØPower supply

ØEthernet cable

ØSDI DIN Cable

ØPhantom PCC software

ØGetting Started Guide

Options

ØCanon EOS lens mount

ØPL-mount

ØC-mount

Popular Accessories

ØHandle

ØCheese Plate
